INTRODUCING THE LATEST DEVELOPMENT IN THE FIELD OF WIND TURBINES

The construction of our turbines was motivated by the highest available energy yield. One of the biggest gains on the market is achieved.

36%

of the wind's output can be utilized at 59.2% of the theoretical maximum. This is one of the most outstanding returns today. For comparison: an average or horizontal axis wind turbine approx 20-22% -os achieves 20-22% efficiency and starts production in a relatively strong wind.


The shape of our turbines is the optimum alloy of hybrids of known turbine forms – the type names also refer to this. During decades of development, our engineers have modelled and analyzed more than 300 shapes, sizes and angles.

They achieved the highest possible efficiency by optimizing the so-called Vortex effect.

This aerodynamic phenomenon is the suctioning effect of turbulence within the rotational range of the wings, causing pressure drop inside, while outside there is wind pressure It is a kind of mechanical self-excitation, which is amazingly high, with a 36% efficiency.

Vertical wings

In contrast to most wind turbines, the WINDYMOVE wind generators have vertical wings, so you do not need to deal with the wind, the wind can blow in any direction, there is no losing time.

     Intelligent control ensures that the unit starts to produce at very low 2.5 m / s wind. The control allows the progressive extension of the generator coils to allow the rotor to withstand the backward electromagnetic braking force at low wind speed.

     Another advantage is that the vertical blades do not penetrate the air stream, which  results in much more efficient and quieter operation.


Therefore, only 3 dB is the noise emission.

The 3d noise emission is virtually beyond the human range. The flutter of the leaves or the human voice is louder, so they do not disturb the inhabitants at the top of commercial and residential premises. Very significant cost-effectiveness can be achieved with their use.

            The Vortex effect and the control of the system make it possible to achieve the outstanding yield that excites us from the field.

            One of the most critical factors for wind turbines is environmental noise. We are performing well in this.

            Our hybrid turbines do not fall vertically into the air stream like horizontal axis winders, so they have virtually no noise, no well-known disturbing surplus of 35-50 decibels.   WINDYMOVE wind generators are therefore perfect for densely integrated urban applications.

Since they have virtually no sound and have very high energy density in the area, they are a smart choice and can be an ideal addition to solar panels.

WHY WILL YOU CHOOSE US?


Because of our sophisticated technical solutions!

Get acquainted with our advantages!

WINDYMOVE wind generators are designed for the highest available yield

            The Windymove wind generator family includes many engineers and research institutes with many thousands of hours of development work. The technical development of our products is due to thousands of experimental models, optimizing the wings and their angles. This is our secret, not more.

The spirit of any wind turbine is the control system.

The spirit of any wind turbine is the control system.

Intelligent control:

The key to generating electricity at low wind speed is to keep the rotor at optimum speed. Intelligent control ensures optimized production coverage of the coils, adjusting to the speed of the blowing wind. In a strong wind, by boosting production, it rocks the rotor at optimum speed, and also acts as a safety brake: it enters fictitious loads for the braking effect at critical wind speeds.

All of our products are delivered with

own developed controlled inverters

one of the most advanced drive system in the market.

  1. The safety braking system is automatic. At critical wind speed, the controller retards the turbine by electronic loads - protecting your investment.

  2. The acceleration is provided by a mechanical gear change system. Gear change that multiplies the rotary speed.This is required for the rotor to keep the generator at optimum speed.

  3. The generator is in an ultralight version and it is the most advanced air-core and self-cooling construction. The coils are fixed and hermetically sealed to ensure durability. No problem with salt, water, vapor, dust, and no aging part or sliding contact. It is desined for 50 years.



The safety brake.  When installing or adjusting, the rotor has to be stopped.

The safety brake.

When installing or adjusting, the rotor has to be stopped.

It's quieter than your environment

One of the most critical factors for wind turbines is environmental noise. We are performing well in this. Our hybrid turbines do not fall vertically into the air stream like horizontal axis turbines, so they have virtually no noise, no well-known disturbing surplus of 35-50 decibels. WINDYMOVE wind generators are therefore perfect for densely integrated urban applications. Since they have virtually no sound and have very high energy density in the area, they are a smart choice and can be an ideal addition to solar panels.

There are currently two types available

Our products have a minimum lifetime of 30 years. . The warranty for mechanical parts is 20 years, for electronics accessories 10 years.
Each component can be exchanged, repaired and recycled.

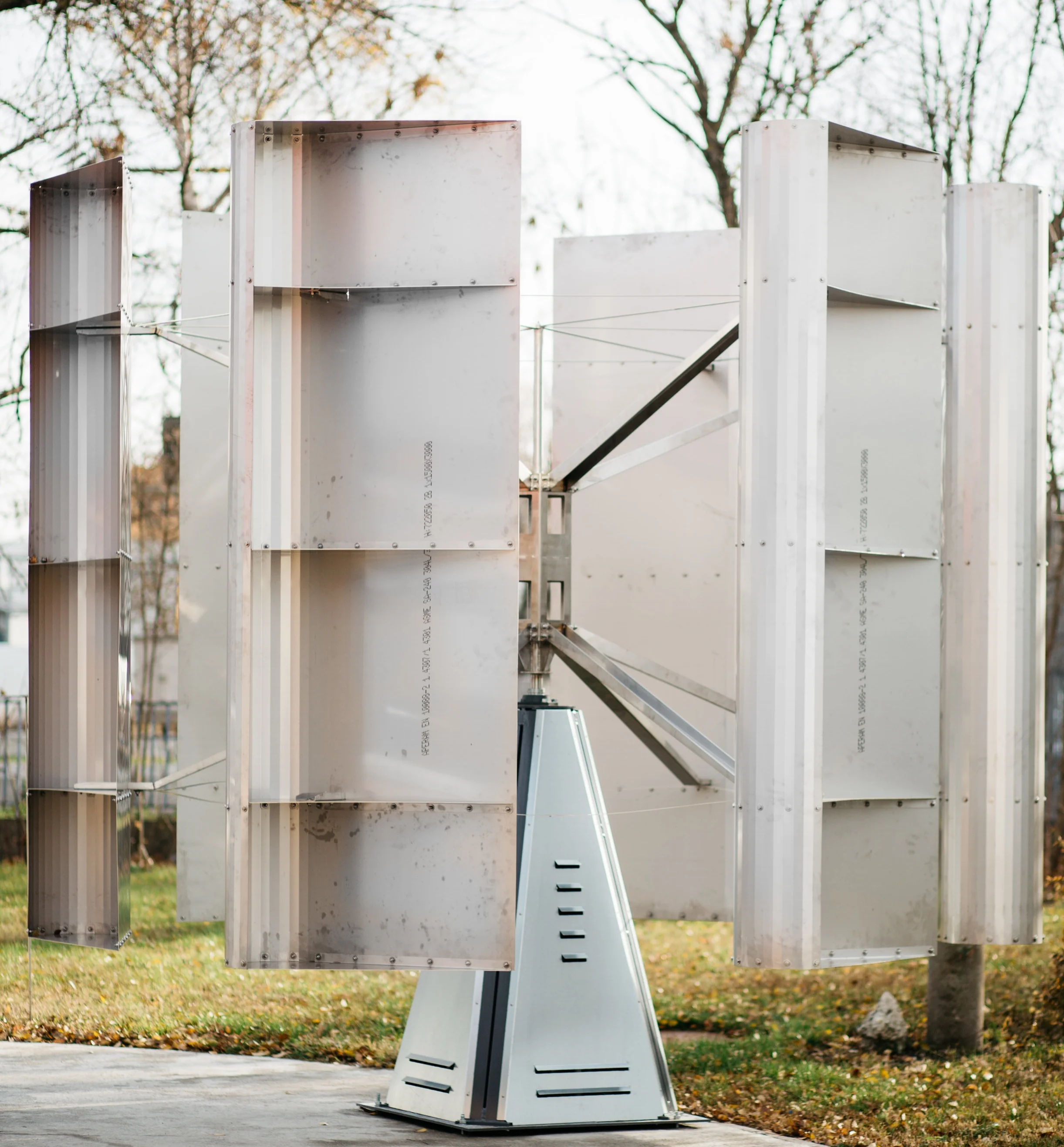

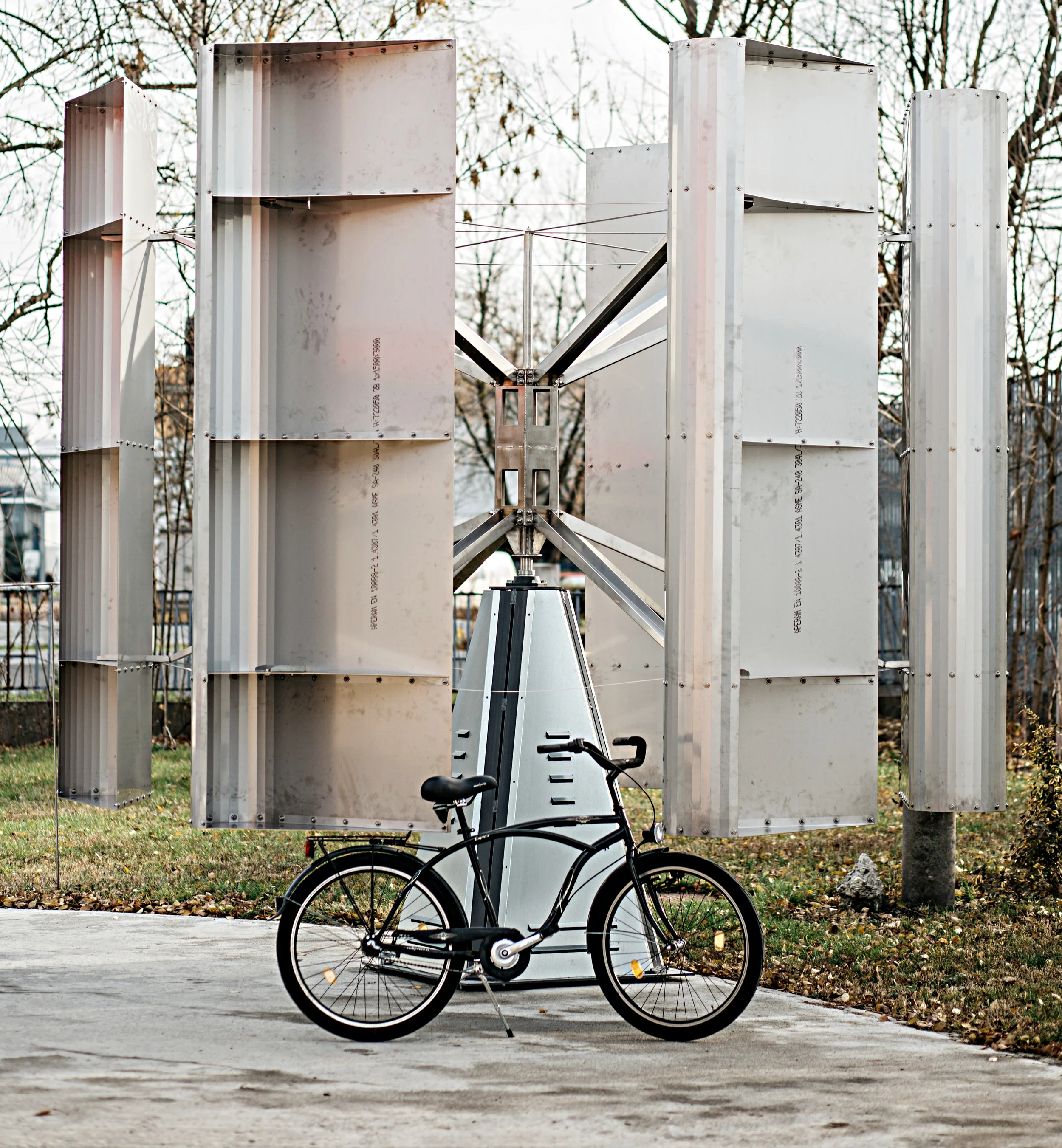

Hybrid 5

The space requirement of the rotor: 4.22 m2

Number of Wings: 6 pieces

Rotor Diameter: 2850 mm

Rotor height: 1500 mm

Total height: 2600 mm

Material: 100% rozsdamentes acél (INOX) 100% Stainless Steel (INOX)

 Weight: 214 kg

Generator (permanent magnets): 3,5 kW (max 5 kW) 3.5 kW (max 5 kW)

Generator output voltagefeszültség: 0 to 500 AC for 3 phases

Inverter. feszültség: voltage: 0-500 V

Minimum speed: 1m/sec

Maximum speed: 14m/sec

Survival speed: 50m/sec

Tanúsítvány: certificate: IEC 55022 - IEC 61000

Export price (1pcs): get in touch

Dealer export price (1pcs): get in touch



Hybrid 10

The space requirement of the rotor: 12 m2

Number of Wings: 6 pieces

Rotor Diameter: 4100 mm

Rotor height: 3000 mm

Total height: 4400 mm

Material: 100% rozsdamentes acél (INOX) 100% Stainless Steel (INOX)

 Weight: 460 kg

Generator (permanent magnets): 3,5 kW (max 5 kW) 2x3.5 kW (max 10 kW)

 Generator output voltage: 0 to 500 AC for 3 phases



Inverter output feszültség:voltage: 0-700 V

Minimum speed: 1m/sec

Maximum speed: 14m/sec

Speed Limit: 50m/sec

Certificate: IEC 55022 - IEC 61000

Export price (1pcs): get in touch

Dealer export price (1pcs): get in touch





WINDYMOVE wind turbines are patent-protected.

Name of the patent:
Hybrid ™ model and MVT® technology (Multiple Vortex Technology) - Vortex® patent

1018803A3 2 /07/ 2009Hybrid ™ model and MVT® technology

(Multiple Vortex Technology) - Vortex® patent 1018803A3 2/07/2009

WINDYMOVE

contact:    viktor.solti@windymove.com

Another problem is that the wind never blows evenly. Most efficiently, the ever-changing force and direction of the wind can be utilized with large surface, large inertia, evenly generating structures that "skip" passages of impulse and directional changes.

Start speed of

2.5 m / sec

Our turbines are also profitable at extreme low wind speeds.

High-level technical solutions

100% INOX

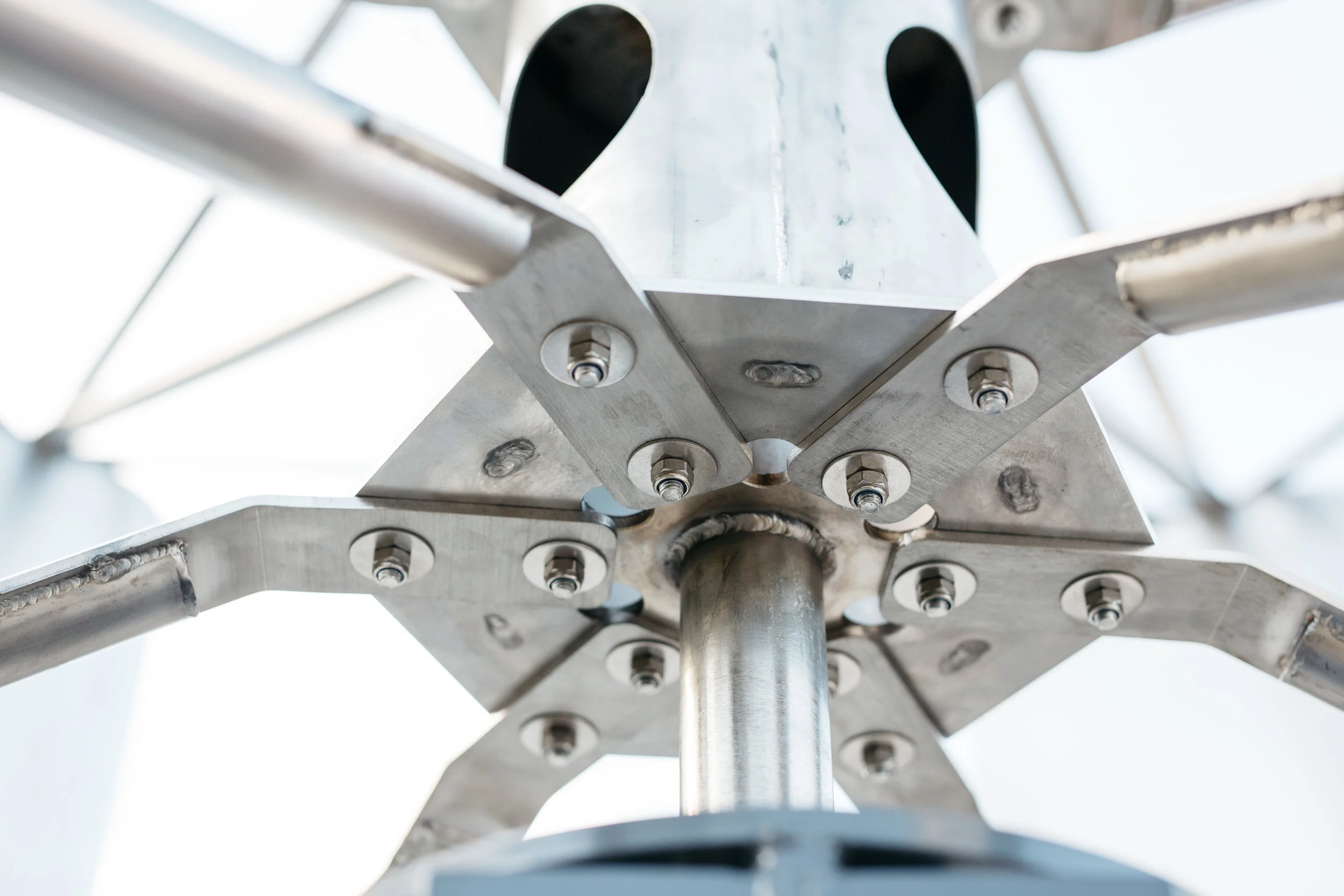

   The most exposed wings, stiffeners, and bearings are made of the highest quality stainless steel. The computer-controlled extrusion provides stiffness to this wing shape.

Quality material use   INOX stainless steel .

Quality material use INOX stainless steel.

The bent wings are much stiffer than the bent bends.

PROFESSIONAL MANUFACTURING TECHNOLOGY: OUR PRODUCTION IS BASED ON ISO STANDARDS

With our products you will be as proud, as we are.

In our production plant, high-skilled professionals and state-of-the-art machines ensure constant quality. All our products have CE conformity and the ISO standard guarantees the perfect product. Turbine life is at least 30 years. Each component can be exchanged, repaired and recycled. Self-aligning bearings, surface treated, strong frame construction. Acid proof wings, stiffeners and covers.
